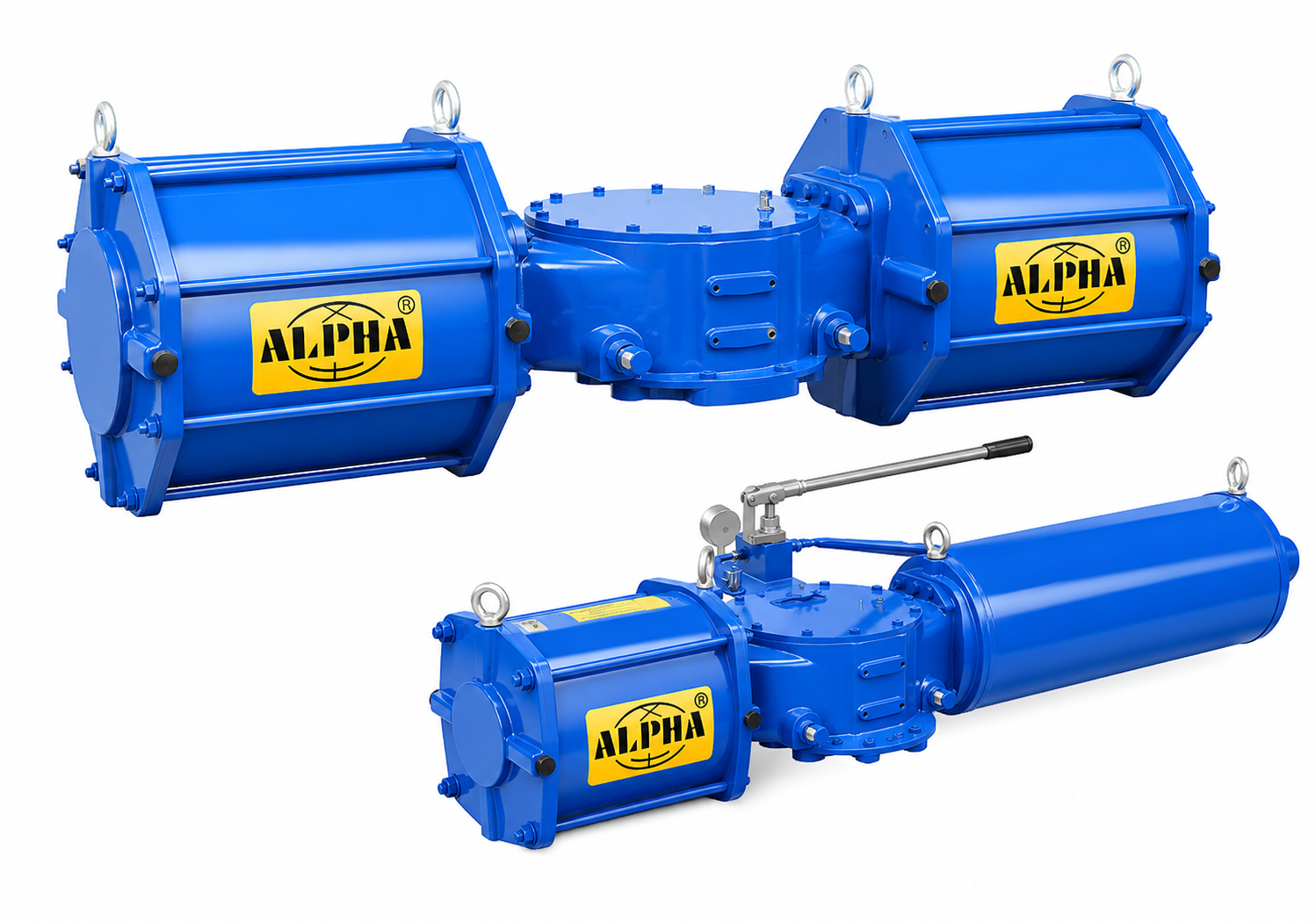

Description

HPY series actuators adopt a highly modular design concept and are divided into cylinder module (hydraulic cylinder module), box module and spring module to simplify field configuration. Users can flexibly choose the mode of action according to the actual use requirements, with strong mutuality and universality. It can easily realize the combination and replacement of single and double acting, manual operation and other modules without the need of special tools. Cylinder or hydraulic cylinder module can be configured on one side or on both sides.

High Precision and High Strength with Inner Oriented Design

The center body and yoke are made of ductile iron or cast steel, the yoke pin is made of alloy steel with excellent mechanical performance, and the adjustment bolts and fastening bolts of flange on both sides of the center body are of class 12.9 to ensure sufficient strength. The processing of the center body is one-step molding on four sides by high precision horizontal machining center for high transmission accuracy
