Scotch Yoke Pneumatic Actuators South Africa

KV Controls supplies high-performance Scotch Yoke Pneumatic Actuators for demanding valve automation applications across South Africa. Designed to deliver maximum torque at valve breakaway and seating positions, Scotch yoke actuators are the preferred solution for large quarter-turn valves operating in mining, petrochemical, power generation, water treatment, oil and gas, and heavy industrial environments.

Available in both double acting and spring return configurations, our Scotch yoke actuators provide reliable valve operation, high torque output, fail-safe functionality, and long service life in critical process applications.

What Is a Scotch Yoke Pneumatic Actuator?

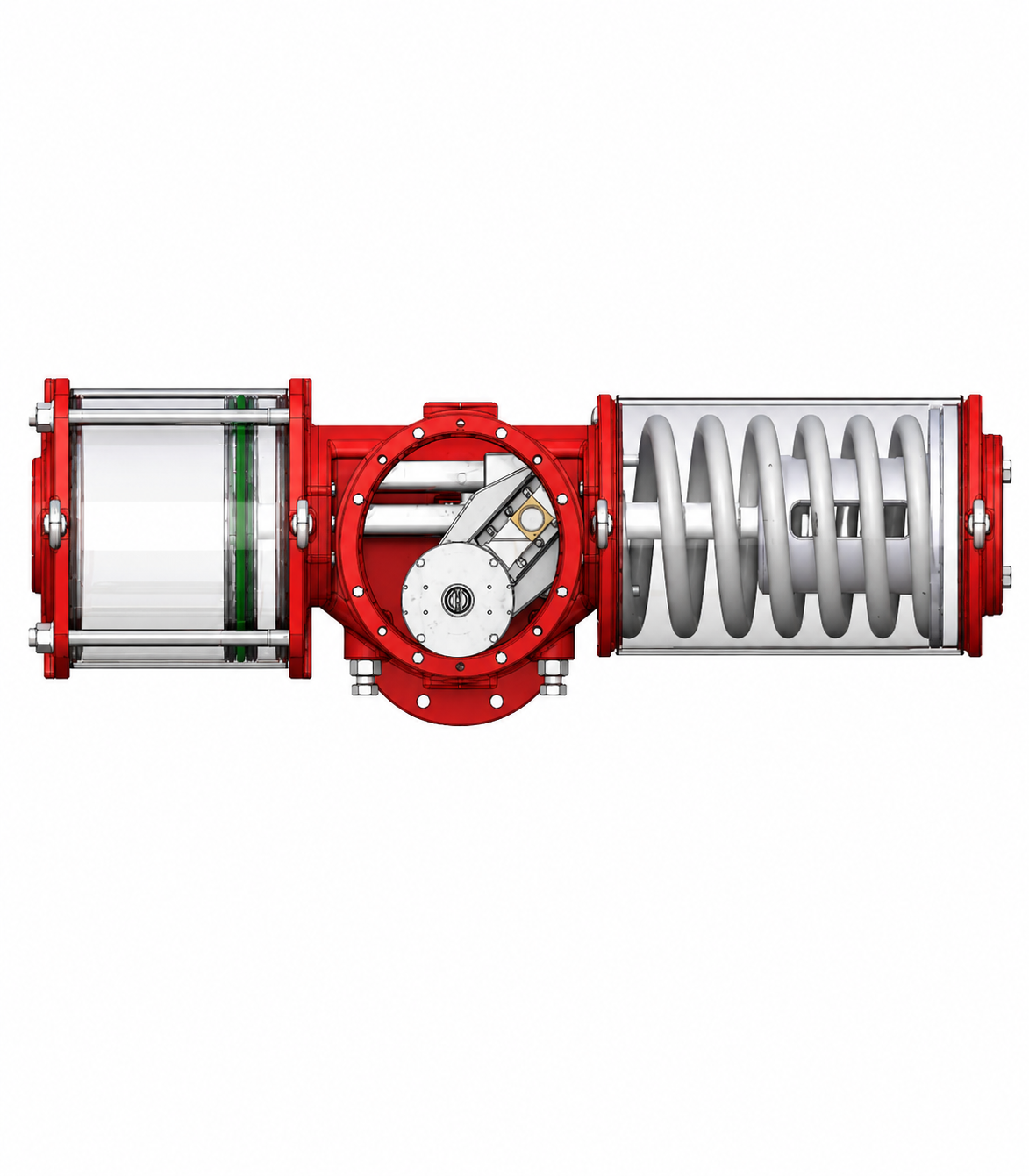

A Scotch yoke pneumatic actuator converts the linear movement of a piston into rotary motion through a yoke and crank mechanism. This design produces a variable torque output that closely matches the operating characteristics of quarter-turn valves such as ball valves, butterfly valves, and plug valves.

Unlike conventional rack and pinion actuators, Scotch yoke actuators generate significantly higher torque at the beginning and end of the valve stroke. This makes them ideal for applications where high breakaway torque and tight shut-off performance are required.

Why Choose a Scotch Yoke Actuator?

Scotch yoke actuators are specifically designed for applications where torque requirements vary throughout valve travel.

Higher Breakaway Torque

Many quarter-turn valves require their highest torque during opening and closing. The Scotch yoke mechanism naturally delivers maximum torque at these critical positions, improving valve performance and operational reliability.

Ideal for Large Valves

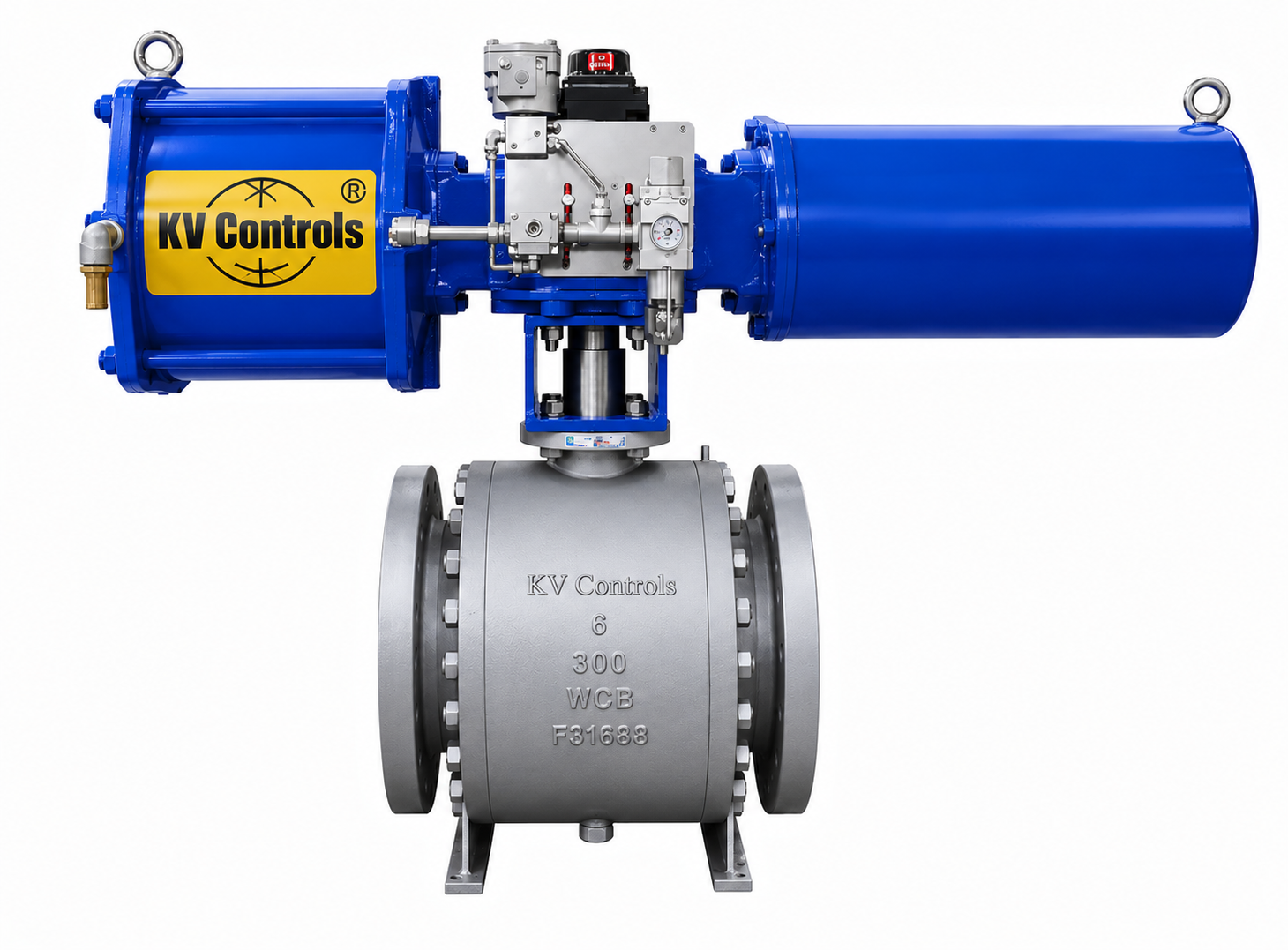

Scotch yoke actuators are commonly used on larger ball valves and butterfly valves where high torque requirements exceed the practical limits of rack and pinion actuator designs.

Reliable Fail-Safe Operation

Spring return Scotch yoke actuators provide dependable fail-open or fail-close operation during air supply failure, making them suitable for emergency shutdown (ESD) and safety-critical applications.

Heavy-Duty Construction

Built for harsh industrial environments, Scotch yoke actuators offer exceptional durability, corrosion resistance, and long operating life with minimal maintenance requirements.

Features and Benefits

• High torque output throughout valve operation
• Maximum breakaway and seating torque
• Double acting and spring return models available
• Fail-safe operation for critical processes
• ISO 5211 valve mounting compatibility
• NAMUR accessory mounting interface
• Adjustable travel stops
• Suitable for indoor and outdoor installation
• Long service life and reduced maintenance
• Compatible with limit switches, solenoid valves and positioners

Industrial Applications

Mining and Mineral Processing

Scotch yoke actuators provide reliable valve automation for slurry systems, process water networks, compressed air systems, and mineral processing plants where high torque and durability are essential.

Petrochemical and Refining

Used on process isolation valves, emergency shutdown valves, and critical control systems requiring dependable fail-safe performance.

Oil and Gas Facilities

Ideal for pipeline isolation valves, tank farms, loading facilities, and ESD valve applications where operational reliability is critical.

Water and Wastewater Treatment

Suitable for large butterfly valves and process isolation valves used throughout municipal and industrial water treatment facilities.

Power Generation

Provides dependable valve automation for cooling water systems, steam services, fuel handling systems, and auxiliary process applications.

Double Acting Scotch Yoke Actuators

Double acting Scotch yoke actuators use compressed air to power both opening and closing strokes. They offer high operating efficiency, fast response times, and precise valve control for automated process systems.

Spring Return Scotch Yoke Actuators

Spring return Scotch yoke actuators use compressed air for operation and spring force to return the valve to a predetermined safe position in the event of power or air supply loss. These actuators are widely used in emergency shutdown and safety instrumented systems.

Why Choose KV Controls?

KV Controls supplies premium Scotch Yoke Pneumatic Actuators supported by expert technical assistance, actuator sizing, valve selection, and complete valve automation solutions.

Our team can assist with:

• Actuator sizing and torque calculations
• Valve and actuator matching
• Fail-safe actuator selection
• Valve automation packages
• Solenoid valves and positioners
• Limit switch boxes
• Industrial valve solutions

Whether you require a high-torque actuator for a large butterfly valve or a fail-safe emergency shutdown system, KV Controls can provide a reliable valve automation solution tailored to your application.

Contact KV Controls today for expert assistance with Scotch Yoke Pneumatic Actuators in South Africa.
