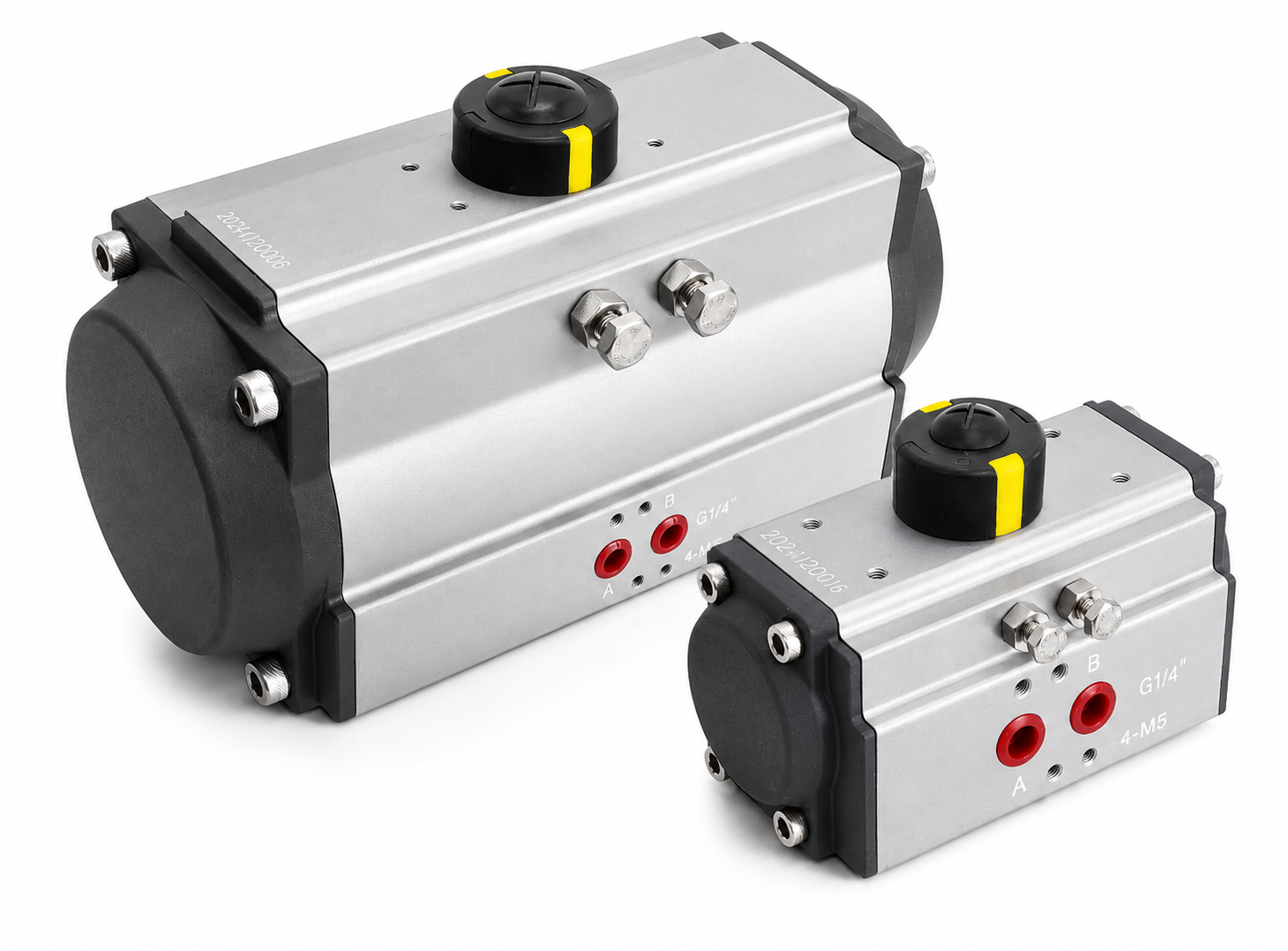

Rack and Pinion Pneumatic Actuators

Reliable Valve Automation for Industrial Applications

KVC Rack and Pinion Pneumatic Actuators provide reliable, efficient and cost-effective valve automation for a wide range of industrial applications. Designed for quarter-turn valves such as ball valves, butterfly valves and plug valves, these actuators deliver high torque output, long service life and dependable operation in demanding environments.

Our rack and pinion actuators are engineered to international standards and feature compact construction, precision-machined components and modular designs that simplify installation and maintenance. Available in both double acting and spring return configurations, KVC actuators offer the ideal solution for process automation systems throughout South Africa.

What Is a Rack and Pinion Pneumatic Actuator?

A rack and pinion pneumatic actuator converts compressed air energy into rotary motion. The actuator uses opposing pistons fitted with rack gears that engage a central pinion. As compressed air enters the actuator, the pistons move linearly, rotating the pinion and turning the valve through 90 degrees.

This proven mechanism provides accurate valve control, high cycle life and consistent torque output, making rack and pinion actuators one of the most widely used valve automation solutions in industrial process control systems.

Key Features and Benefits

High Torque Output

KVC rack and pinion actuators are designed to deliver high torque across the full operating stroke, ensuring reliable valve operation even under demanding process conditions. Multiple actuator sizes are available to suit a wide range of valve torque requirements.

Compact and Lightweight Design

The extruded aluminium body provides excellent strength while maintaining a lightweight construction. This reduces installation loads and makes the actuators suitable for confined spaces and skid-mounted systems.

Corrosion Resistant Construction

Actuator bodies are available with hard anodised finishes, epoxy powder coating, PTFE coating and optional nickel plating for enhanced corrosion resistance in harsh industrial environments.

Precision Travel Adjustment

External travel stop adjustment allows precise valve positioning and enables easy adjustment of both open and closed positions. This improves sealing performance and reduces valve wear.

Long Service Life

Low-friction bearings, engineered guides and high-quality seals minimise wear and maximise actuator lifespan. The robust rack and pinion mechanism is designed for reliable long-term operation with minimal maintenance.

NAMUR and ISO Standard Compliance

KVC actuators are manufactured with NAMUR and ISO 5211 mounting standards, allowing easy integration with solenoid valves, positioners, limit switch boxes and automated valves.

Available Actuator Configurations

Double Acting Rack and Pinion Actuators

Double acting actuators use compressed air for both opening and closing operations.

Benefits:

• Fast operation
• High cycle rates
• Precise valve control
• Maximum available torque
• Ideal for continuous duty applications

Spring Return Rack and Pinion Actuators

Spring return actuators provide fail-safe operation by automatically returning the valve to a predetermined position when air pressure is lost.

Benefits:

• Fail-open or fail-closed functionality
• Enhanced plant safety
• Emergency shutdown capability
• Suitable for critical process applications

Technical Features

• Quarter-turn operation (90°)
• Double acting and spring return models
• Torque outputs from small process valves to large industrial valves
• Adjustable travel stops
• NAMUR accessory mounting
• ISO 5211 valve mounting
• Visual position indicator
• Corrosion-resistant coatings
• High-performance spring cartridges
• Low air consumption
• Long cycle life

Applications

Rack and pinion pneumatic actuators are commonly used in:

Water and Wastewater Treatment

Automating butterfly valves and ball valves in filtration, pumping and distribution systems.

Mining and Mineral Processing

Controlling slurry lines, process water systems and chemical dosing equipment.

Chemical Processing

Providing reliable valve automation in corrosive and hazardous environments.

Food and Beverage Manufacturing

Supporting hygienic process control and automated production systems.

Power Generation

Automating critical process valves in power plants and utility systems.

Oil and Gas Facilities

Controlling isolation valves, process valves and safety shutdown systems.

Why Choose KVC Rack and Pinion Actuators?

KVC actuators are selected by engineers, maintenance teams and procurement professionals because they offer:

✓ Proven rack and pinion technology

✓ Reliable valve automation

✓ High-quality construction

✓ Competitive pricing

✓ International mounting standards

✓ Excellent corrosion resistance

✓ Wide torque range

✓ Fast delivery throughout South Africa

✓ Technical support and actuator sizing assistance

Actuator Accessories

Complete your valve automation package with:

• Solenoid valves
• Limit switch boxes
• Valve positioners
• Air filter regulators
• Manual overrides
• Mounting brackets
• Valve couplers
• Position feedback systems

Rack and Pinion Pneumatic Actuators South Africa

KV Controls supplies a comprehensive range of rack and pinion pneumatic actuators for industrial valve automation applications throughout South Africa. Whether you require a compact actuator for a small ball valve or a high-torque solution for a large butterfly valve, our team can help you select the correct actuator for your application.

Contact KV Controls today for expert advice, actuator sizing assistance and competitive pricing on rack and pinion pneumatic actuators.
