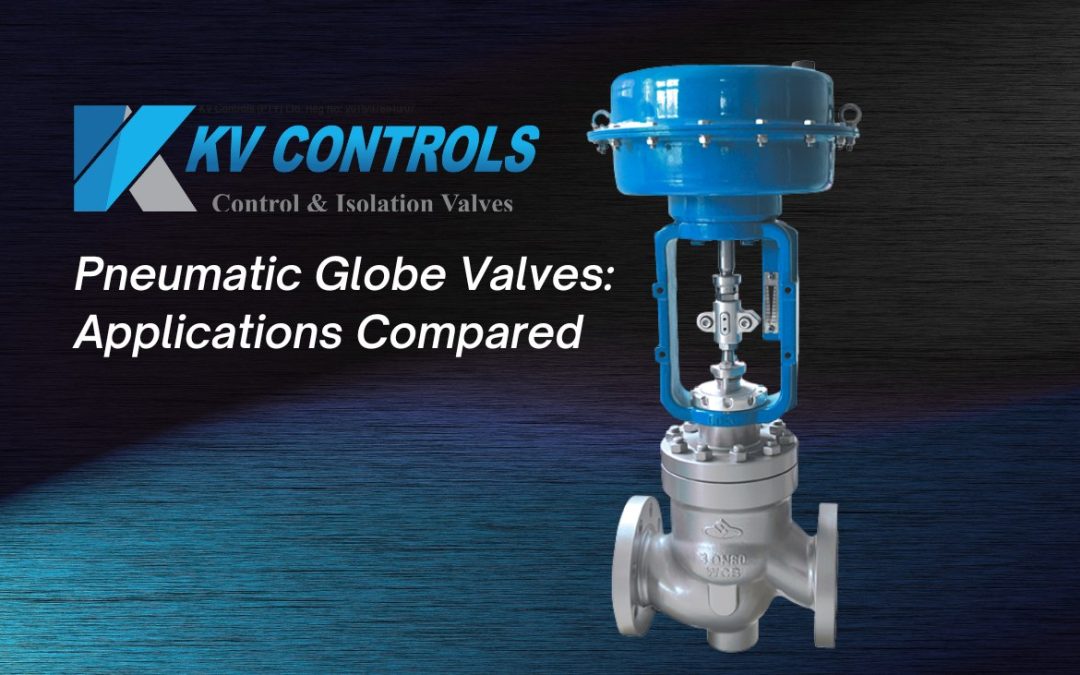

When control accuracy matters, pneumatic globe control valves are hard to beat. Below, we answer three high-intent buyer questions: globe vs ball for throttling, are globes best for steam, and which trims reduce cavitation, choked flow, and noise. Use this to choose correctly—and configure a valve package that lasts.

1) Globe vs ball valve for throttling—when to use each?

Globe valve strengths

True throttling control: Characterised plugs (often equal-percentage) give smooth resolution at low openings and wide turndown.
Predictable ΔP vs stroke: Linear stem motion with stable flow curves helps tight loop tuning.
Better small-open stability: Less “jumpiness” near seat compared to many ball trims.

Ball valve strengths

High capacity, lower cost/size: Quarter-turn ball valves can deliver large Cv in compact bodies.
Clean media, on/off + coarse control: V-port balls improve modulating behaviour but are still best where precision isn’t critical.
Lower pressure drop fully open.

Rule of thumb

Choose a globe for precision throttling, frequent modulating duty, smaller step changes, and hard-to-control loops.
Choose a (V-port) ball for high flow with acceptable control quality on clean media and where capex and footprint dominate.

2) Is a globe control valve good for steam control?

Yes—globes are a first choice for steam, including jacket heating, heat exchangers, and temperature control on processes with frequent disturbances.

Why globes excel on steam

High actuator thrust (pneumatic diaphragm/piston) to seat tight against varying ΔP.
Stable equal-percentage characteristic to handle non-linear heat transfer.
Materials & packing options (e.g., stainless trim, graphite packing) suit high temperature cycles.

Superheated steam & desuperheating loops

For superheated, pick hardened metal seats and trims rated for temperature/erosion.
For desuperheating, the control valve usually meters water injection; use fine control trims, good atomisation strategy, fast response, and verify flash/cavitation margins on the water side.

Best practices

Size for normal operating Cv ~60–80% open (not fully open).
Confirm leakage class to match energy isolation needs.
Add positioner with diagnostics, air set, and volume booster on large actuators for step changes.

3) Best globe configuration for cavitation, choked flow, and noise reduction

Challenges

Cavitation (liquids): Rapid pressure drop below vapour pressure forms/implodes bubbles, pitting trim and causing vibration/noise.
Choked flow (gases/steam): Sonic velocity limits mass flow; added ΔP increases noise, not capacity.
Aerodynamic noise: High velocity jets and turbulence excite piping/structures.

Mitigation with the right trim

Anti-cavitation / multi-stage trims: Staged pressure drops, drilled cages, or labyrinth paths spread ΔP, keeping local pressure above vapour pressure until exit.
Low-noise cages / diffuser trims: Multi-hole or stacked passages break up jet energy and reduce acoustic intensity.
Hardened, erosion-resistant materials: Stellite/Carbide seating surfaces for abrasive or flashing duties.
Body/piping measures: Upstream strainers for debris, expanders downstream to lower velocity, and silencers for compressible service.

Selection quick-check

Compute FL, FP, xT and cavitation index; if margins are tight, move to multi-stage.
Keep valve outlet velocity within accepted limits; consider bigger body/trim.
Verify shutoff class is compatible with chosen trim (some low-noise/cavitation trims have specific leakage ratings).
