ZSL & ZDL Linear Pneumatic Actuators

Heavy-Duty Linear Pneumatic Actuators for Critical Valve Automation

The KV Controls ZSL and ZDL Series are high-performance linear pneumatic actuators designed for demanding industrial automation applications. Engineered to deliver reliable linear motion, these actuators provide the force, durability and fail-safe functionality required for critical process control systems.

Designed for use on knife gate valves, sluice gates, penstocks, dampers, diverter gates and other linear motion applications, the ZSL and ZDL range offers dependable operation in mining, water treatment, power generation, chemical processing and bulk material handling industries.

Available in both double acting and spring return configurations, the ZSL and ZDL actuator range provides flexible solutions for standard automation duties as well as critical safety applications.

Built for Industrial Reliability

Industrial environments demand actuator systems capable of operating under harsh conditions while maintaining consistent performance. The ZSL and ZDL actuator range is manufactured using robust cylinder construction, precision-engineered components and heavy-duty sealing systems to maximise service life and minimise maintenance requirements.

The actuator design provides smooth linear movement, reliable thrust output and excellent resistance to the demanding conditions commonly encountered in mining, process plants and water treatment facilities.

Key Features

• Heavy-duty linear pneumatic actuator design
• Double acting and spring return models available
• High thrust output for demanding applications
• Reliable fail-safe operation
• Corrosion-resistant construction
• Long service life
• Low maintenance requirements
• Suitable for indoor and outdoor installations
• Available in multiple bore sizes
• Designed for critical process applications

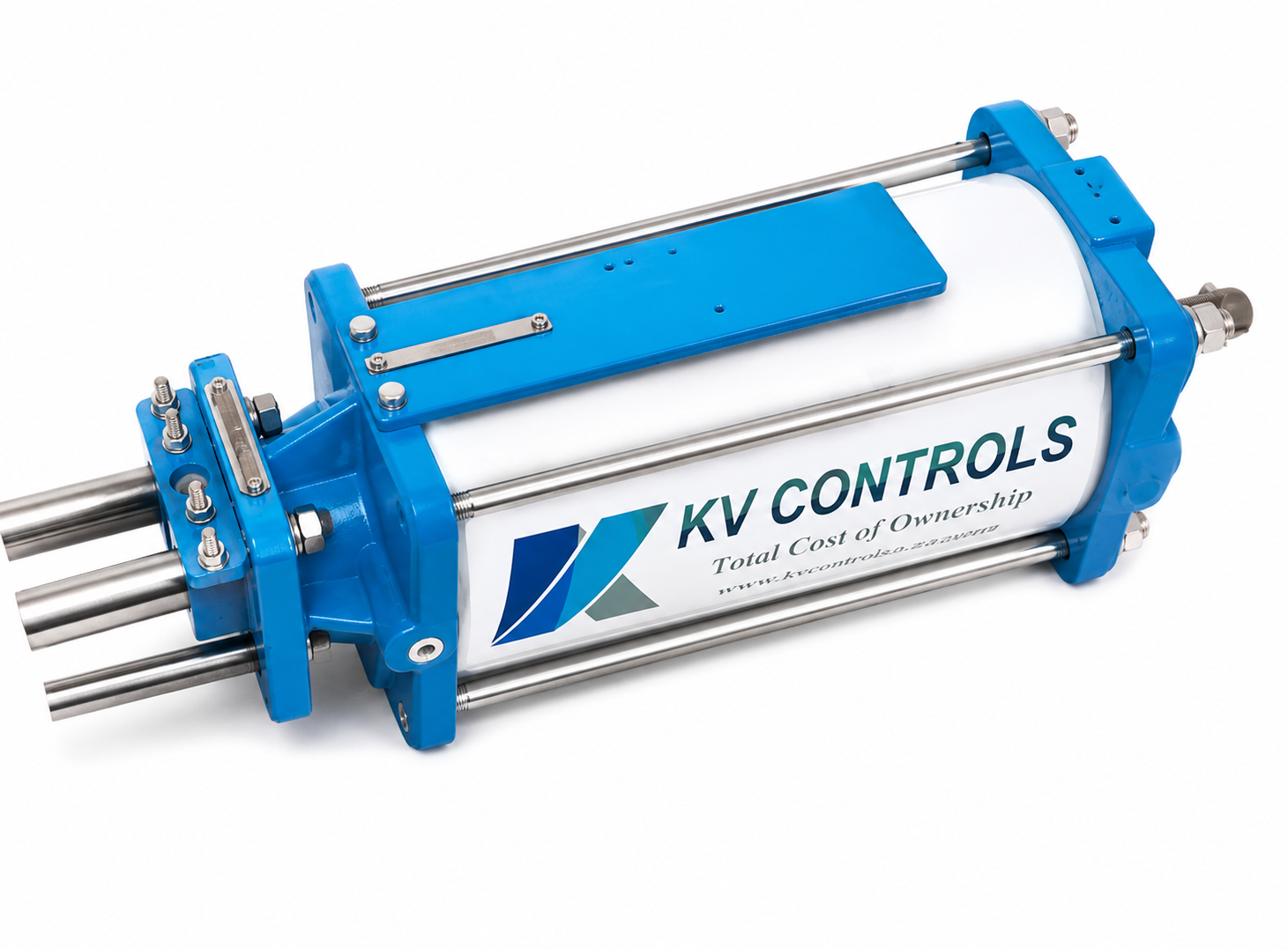

ZSL Double Acting Linear Pneumatic Actuators

The ZSL Series uses compressed air to drive both extension and retraction strokes. This double acting configuration provides controlled movement in both directions and is ideal for applications where consistent operating force and fast response times are required.

Benefits of ZSL Double Acting Actuators

• Full pneumatic control in both directions
• High operating efficiency
• Faster cycle times
• Precise movement control
• Suitable for high-cycle applications
• Consistent thrust throughout operation

ZSL actuators are commonly used in automated valve systems, material handling equipment and industrial process control applications where reliable linear motion is required.

ZDL Spring Return Linear Pneumatic Actuators

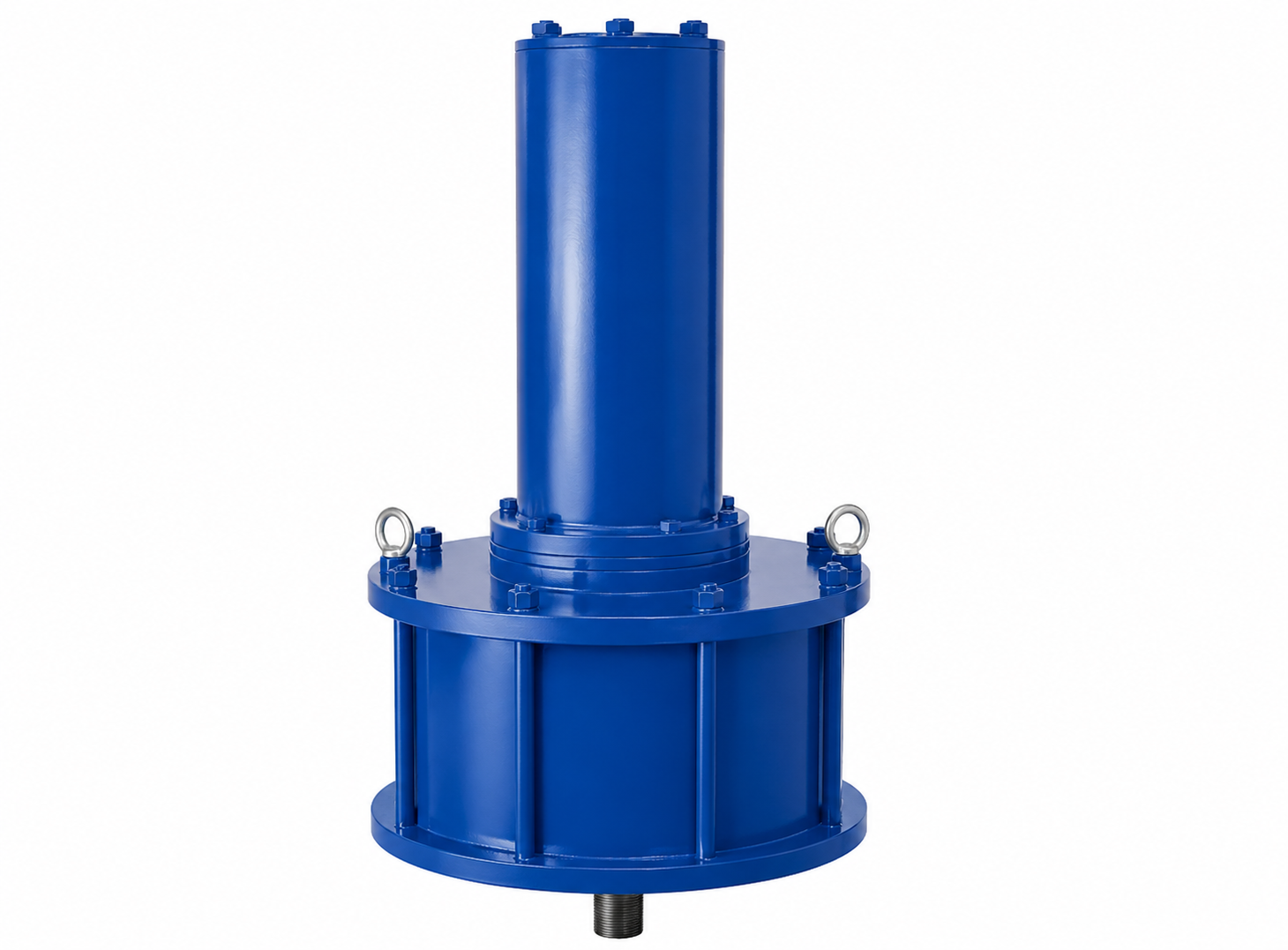

One of the most significant advantages of the KV Controls actuator range is the availability of the ZDL Series spring return actuators.

While many suppliers offer only conventional double acting pneumatic cylinders, the ZDL range provides an integrated fail-safe solution that automatically returns the actuator to its designated safe position if instrument air pressure is lost.

This feature makes the ZDL actuator particularly valuable in applications where process safety, environmental protection and equipment protection are critical considerations.

How Spring Return Operation Works

During normal operation, compressed air moves the actuator through its operating stroke while simultaneously compressing an internal spring pack. Should air pressure fail, the stored spring energy automatically returns the actuator to its predetermined fail-safe position.

This automatic action occurs without the need for electrical power, operator intervention or external energy sources.

Benefits of ZDL Spring Return Actuators

• Automatic fail-safe operation
• Available in fail-open and fail-close configurations
• Increased process safety
• Reduced operational risk
• Protection during instrument air failure
• Suitable for emergency shutdown applications
• Ideal for remote and unmanned installations
• Enhanced plant reliability

For critical process applications, spring return functionality provides an additional layer of protection that is often not available with standard pneumatic cylinder solutions.

Applications

The ZSL and ZDL actuator range is suitable for a wide variety of industrial automation applications.

Knife Gate Valves

Reliable linear actuation for slurry handling, mining processes and abrasive media applications.

Sluice Gates and Penstocks

Dependable operation for water management, wastewater treatment and infrastructure projects.

Dampers

Precise control of airflow systems in power generation, manufacturing and industrial processing facilities.

Bulk Material Handling

Actuation of diverter gates, slide gates and flow control equipment used in material transport systems.

Process Automation

Linear movement control for specialised industrial equipment and automated process systems.

Industries Served

Mining and Mineral Processing

The heavy-duty design of the ZSL and ZDL range makes it ideal for demanding mining applications where reliability and durability are essential.

Water and Wastewater Treatment

Suitable for gate control, isolation duties and process automation within municipal and industrial water treatment facilities.

Power Generation

Reliable actuator solutions for damper systems, cooling water infrastructure and utility services.

Chemical Processing

Designed to provide dependable performance in critical process applications.

Industrial Manufacturing

Suitable for a wide variety of automation and material handling systems.

Why Choose KV Controls?

KV Controls understands the challenges faced by South African industry. Our actuator solutions are selected to provide reliable performance, simplified maintenance and long service life.

By offering both double acting and spring return linear pneumatic actuators, KV Controls provides customers with greater flexibility when designing automated valve systems and safety-critical installations.

Whether your application requires standard pneumatic actuation or advanced fail-safe operation, our team can assist with actuator selection, sizing and technical support.

Frequently Asked Questions

What is the difference between ZSL and ZDL actuators?

ZSL actuators are double acting and use compressed air for both extension and retraction. ZDL actuators are spring return units that automatically move to a safe position if air pressure is lost.

What is a spring return linear pneumatic actuator?

A spring return actuator uses compressed air for one operating stroke and an internal spring mechanism for the return stroke, providing fail-safe operation during air failure.

What valves can these actuators operate?

The ZSL and ZDL range is suitable for knife gate valves, sluice gates, penstocks, dampers, slide gates and other linear motion applications.

Can ZDL actuators be configured as fail-open or fail-close?

Yes. Spring return actuators can be supplied to achieve either fail-open or fail-close operation depending on process requirements.

Are these actuators suitable for mining applications?

Yes. The heavy-duty design makes them ideal for mining, mineral processing, water treatment and other demanding industrial applications.

Request a Quote

Looking for a reliable linear pneumatic actuator for your application?

Contact KV Controls for expert assistance with ZSL double acting actuators, ZDL spring return actuators and complete valve automation solutions throughout South Africa.
