Through-Going Knife Gate Valves for Slurry, Pulp & Severe-Service Applications

The KV Controls DT Series Through-Going Knife Gate Valve is specifically designed for severe-service slurry, pulp, wastewater and solids handling applications requiring unobstructed flow and reliable shut-off performance. Engineered with a full-port through-going design and cavity-free body construction, the DT Series minimizes media build-up, reduces flow resistance and improves operational reliability in demanding industrial process systems.

The DT Series is ideally suited for pulp slurry handling, residue discharge, sewage treatment and solids-laden process media commonly found in mining, pulp & paper and wastewater treatment applications. Its robust construction and self-compensating seat design provide excellent abrasion resistance and extended service life under difficult operating conditions.

Available in manual, pneumatic and automated configurations, the DT Series knife gate valve delivers dependable isolation performance for severe industrial applications.

What Is a Through-Going Knife Gate Valve?

A through-going knife gate valve is a full-port isolation valve designed to provide unrestricted media flow while reducing the risk of product build-up and clogging inside the valve body. Unlike conventional cavity-style knife gate valves, the DT Series features a two-piece cavity-free body design that allows solids, fibers and slurry media to pass through the valve more efficiently.

This design improves flow performance and operational reliability in applications involving slurry, pulp stock, sewage, fibrous media and abrasive solids handling systems.

Full-Port Flow Design

The DT Series features a full-port through-going configuration that minimizes flow restriction and allows unobstructed media passage during operation.

Reduced Media Build-Up

The cavity-free valve body design helps prevent product accumulation and reduces the risk of clogging in solids-laden process systems.

Reliable Isolation Performance

The DT Series provides dependable shut-off performance in severe-service applications involving slurry, sewage, pulp stock and abrasive process media.

DT Series Through-Going Knife Gate Valves for Severe-Service Applications

The DT Series knife gate valve is specifically engineered for process applications requiring reliable flow control and isolation in difficult operating environments.

Pulp & Paper Applications

The DT Series is particularly well suited for pulp stock handling, fiber-rich media and paper processing applications where unrestricted flow and reliable isolation are critical.

Slurry & Residue Discharge Systems

The full-port through-going design improves valve performance in slurry discharge and residue handling applications where product build-up can negatively impact system reliability.

Wastewater & Sewage Treatment

The DT Series is commonly used in sewage treatment plants and wastewater systems for handling sludge, solids-containing process streams and fibrous media.

Mining & Mineral Processing

Mining applications involving abrasive slurry and solids handling benefit from the valve’s abrasion-resistant design and low flow resistance characteristics.

Stock Cleaners & Aqua Pulpers

The DT Series is suitable for integration with stock cleaners, gravity separators and aqua pulpers requiring reliable process isolation and media handling capability.

DT Series Knife Gate Valve Features & Benefits

The DT Series incorporates several design features intended to improve operational reliability, reduce maintenance and optimize process performance in severe-service applications.

Through-Going Full-Port Design

The unrestricted full-port design improves media flow and reduces pressure losses in process systems.

Cavity-Free Valve Body

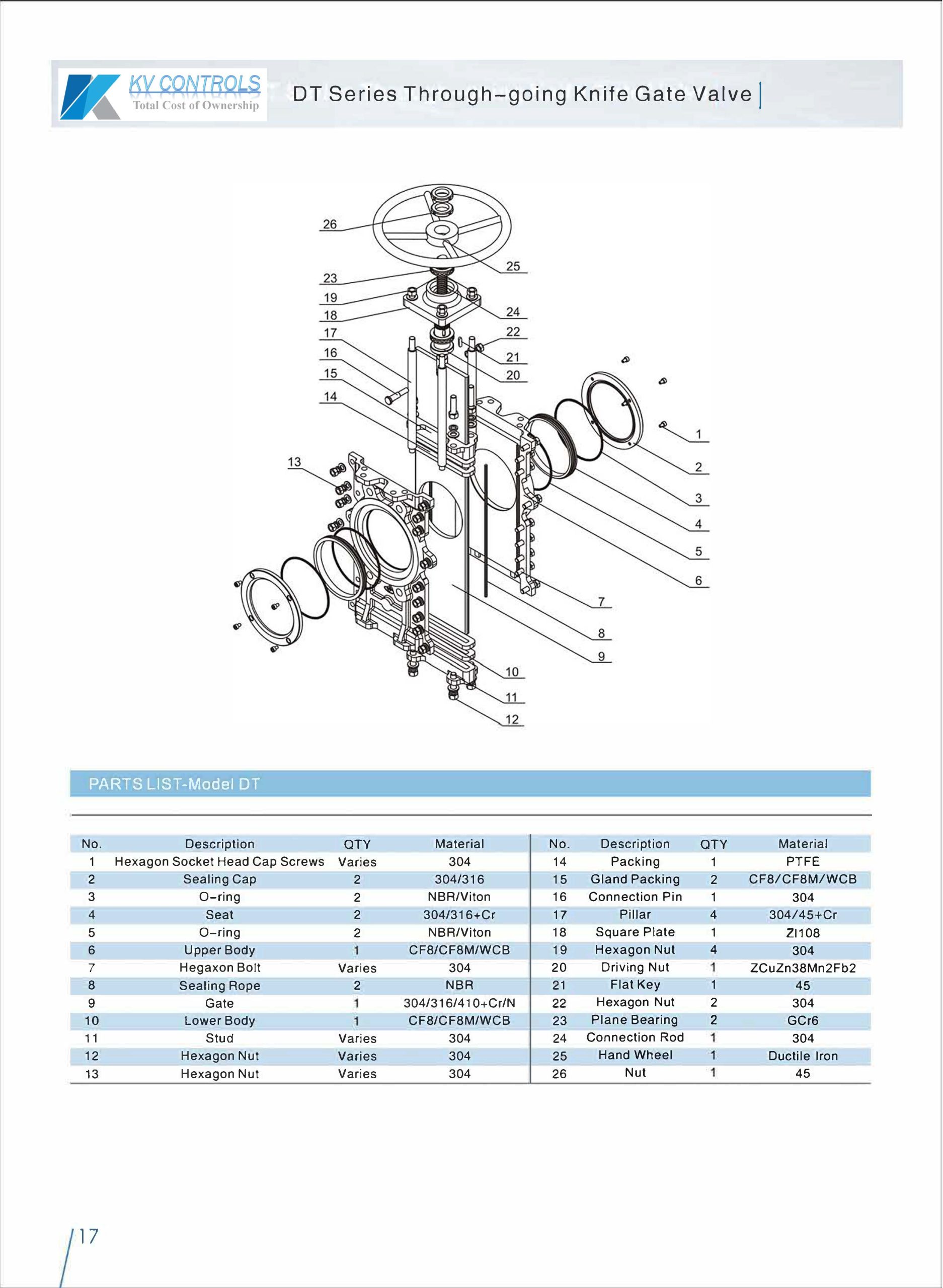

The two-piece body construction eliminates internal cavities that may trap slurry, fibers or solids during operation.

Self-Compensating Seat Design

The O-ring-loaded removable seat design provides tight shut-off performance while compensating for wear during operation.

Excellent Abrasion Resistance

The valve is designed to withstand abrasive slurry and solids handling conditions commonly found in mining and industrial process systems.

Bi-Directional Sealing Capability

The DT Series provides reliable bi-directional sealing performance for demanding process applications.

Reduced Flow Resistance

Low flow resistance improves process efficiency and minimizes pressure drop across the valve.

Manual & Pneumatic Actuation Options

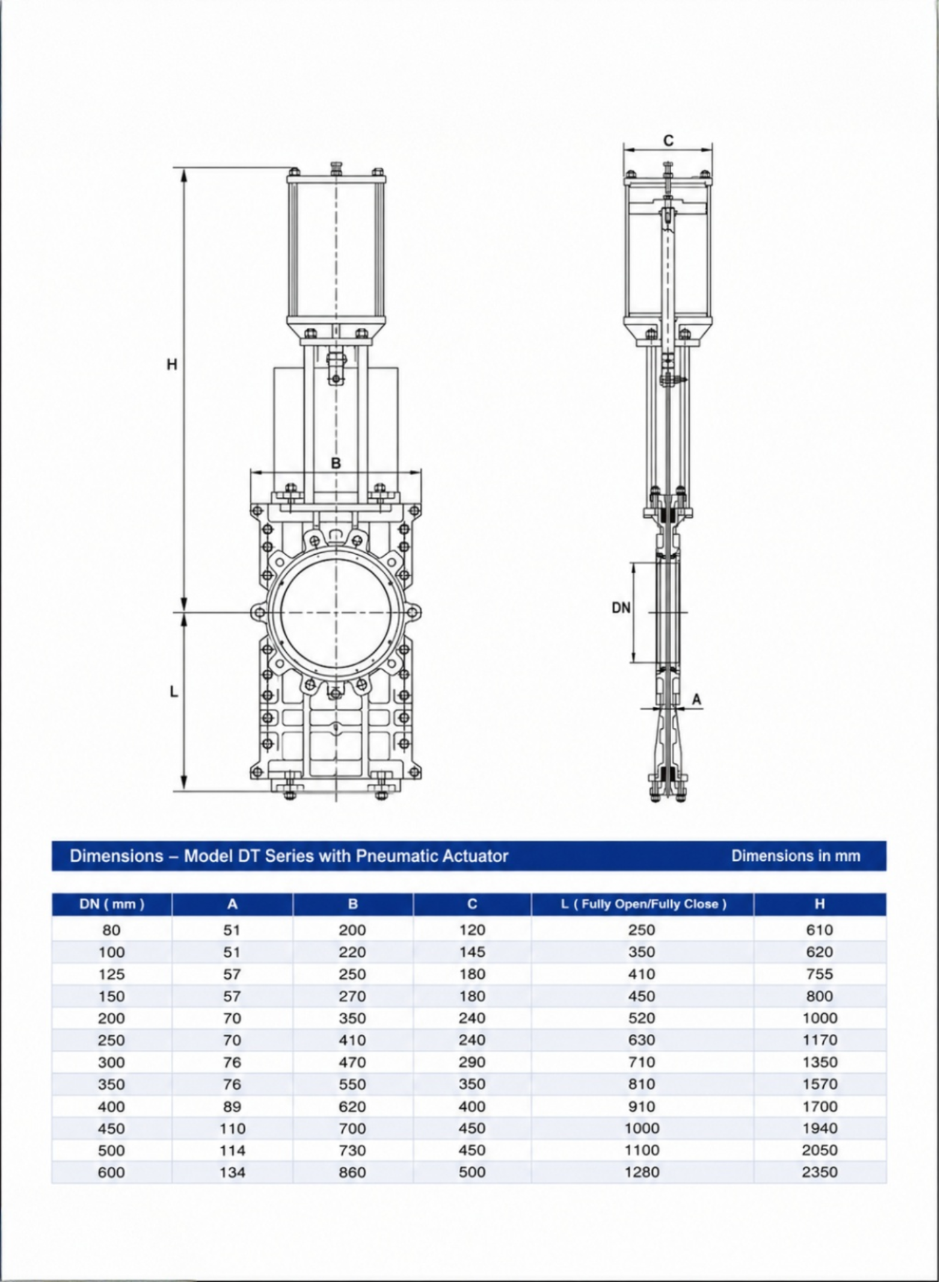

The DT Series is available with manual handwheel, pneumatic actuator and automated actuation configurations.

Technical Specifications

The DT Series through-going knife gate valve is available in multiple sizes, materials and configurations to suit different industrial process requirements.

Available Sizes

DN50 to DN600

Pressure Ratings

• PN10
• PN16
• ANSI150

Seat Materials

• Metal seated
• EPDM
• PTFE

Temperature Ranges

• Metal seats: -20°C to 230°C
• EPDM seats: -20°C to 100°C
• PTFE seats: -20°C to 120°C

Connection Type

• Wafer style connections

Applicable Media

Suitable for:

• Slurry
• Sewage
• Pulp stock
• Syrup
• Slag
• Fiber-containing media
• Residue discharge systems

Available Actuation Options

• Manual handwheel
• Pneumatic actuator
• Automated actuation systems

Why Choose the KV Controls DT Series Through-Going Knife Gate Valve?

KV Controls supplies severe-service knife gate valve solutions designed for demanding mining, pulp, wastewater and industrial operating conditions across South Africa and Africa.

Optimized for Difficult Process Media

The through-going full-port design improves reliability in fibrous, abrasive and solids-containing applications.

Reduced Maintenance & Downtime

The cavity-free body design and self-compensating seat arrangement help reduce product build-up and simplify maintenance.

Reliable Process Isolation

The DT Series delivers dependable shut-off performance in severe-service process control and isolation applications.

South African Technical Support

KV Controls provides local technical support, application expertise and industrial valve solutions tailored for African operating conditions.

Frequently Asked Questions

What is a through-going knife gate valve?

A through-going knife gate valve is a full-port valve designed to provide unrestricted flow and reduce media build-up in slurry and solids handling applications.

What is the DT Series knife gate valve used for?

The DT Series is used in slurry, pulp, wastewater, sewage and severe-service industrial process applications requiring reliable isolation and unrestricted media flow.

What are the advantages of a through-going valve design?

Through-going valve designs reduce flow resistance, minimize clogging risk and improve operational reliability in solids-containing applications.

Is the DT Series suitable for slurry applications?

Yes. The DT Series is specifically designed for slurry, residue discharge and solids handling systems.

What industries use the DT Series knife gate valve?

The DT Series is widely used in mining, pulp & paper, wastewater treatment and industrial process applications.

Can the DT Series be automated?

Yes. The DT Series is available with pneumatic and automated actuation options.

What seat materials are available?

Available seat options include metal seated, EPDM and PTFE configurations.
