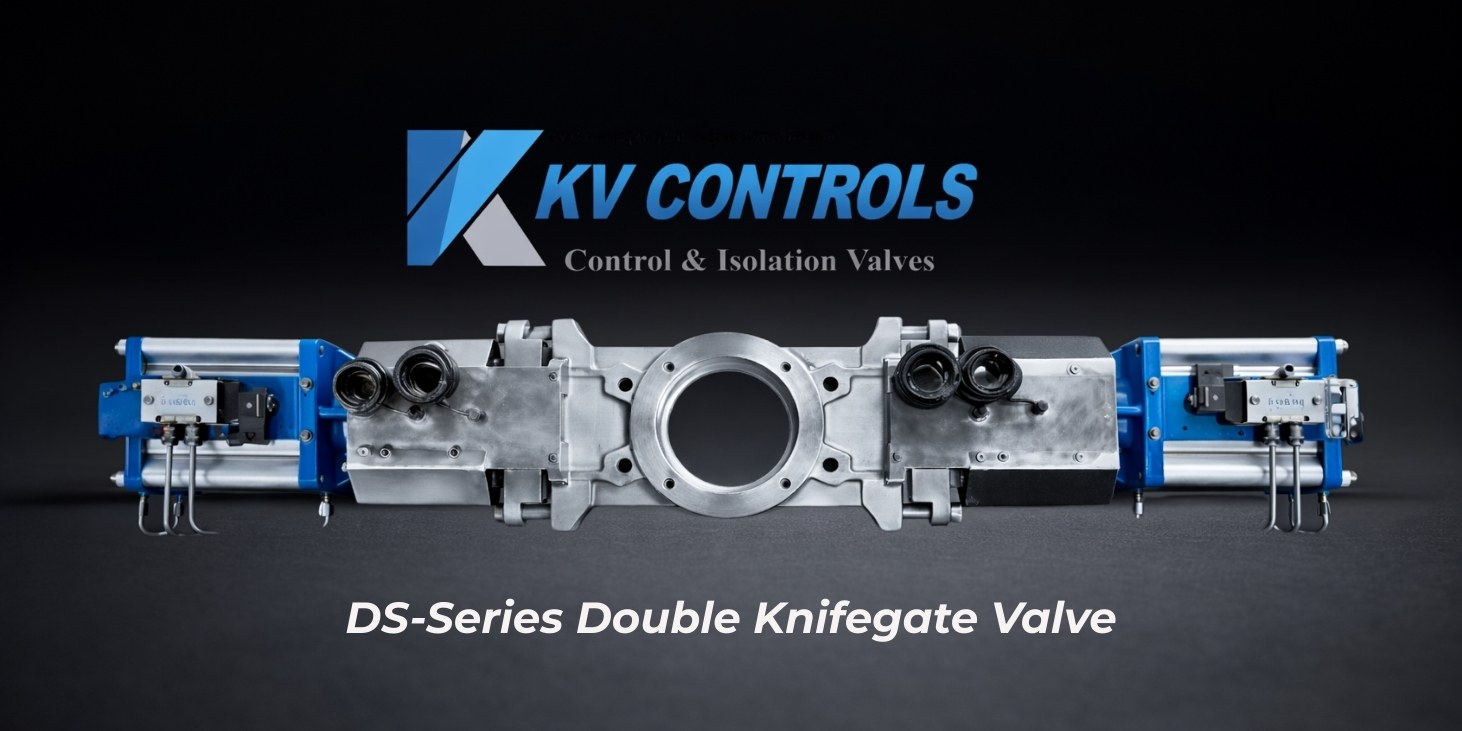

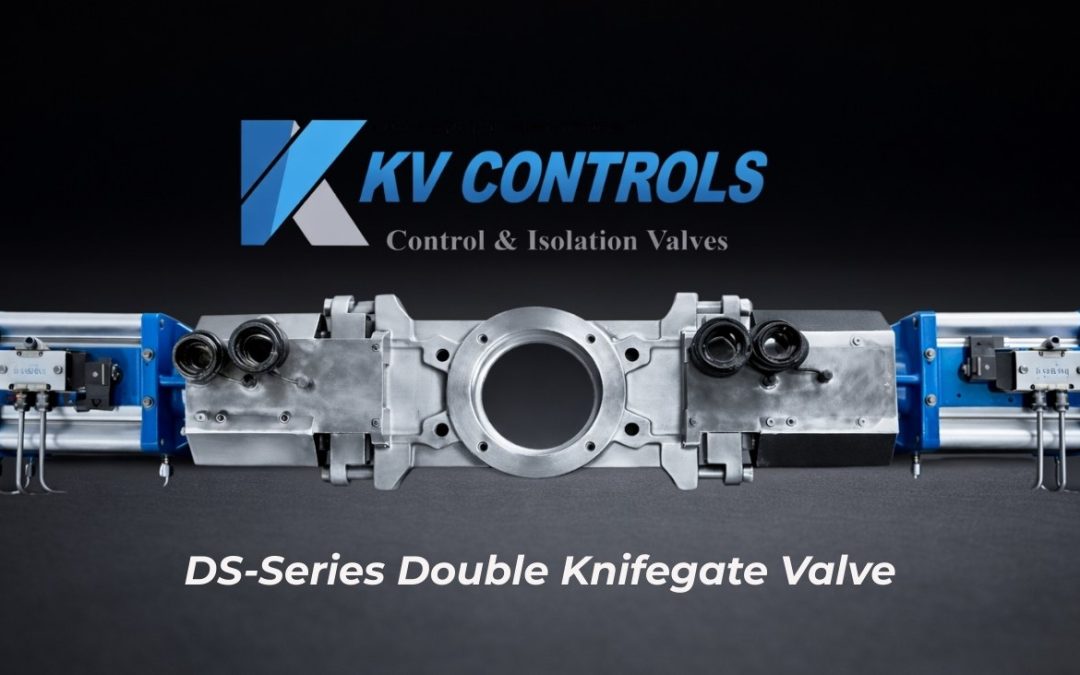

DS-Series Double Knife Gate Valves South Africa

In demanding industrial environments, valve performance plays a major role in production efficiency, maintenance planning, and long-term reliability. Where media contains pulp, slurry, residue, fibre, syrup, slag, or wastewater, operations need a valve that can deliver dependable shut-off and efficient control under tough service conditions. This is where the DS-Series Double Knife Gate Valve from KV Controls stands out as a strong solution for South African industry.

At KV Controls, we understand that difficult media calls for more than a standard isolation valve. In industries such as pulp and paper, sewage treatment, and residue handling, the wrong valve can lead to build-up, unreliable shut-off, and unnecessary maintenance. The DS-Series Double Knife Gate Valve is designed for these conditions, giving businesses a practical valve solution for challenging on/off service and process duties.

What Is a DS-Series Double Knife Gate Valve?

The DS-Series Double Knife Gate Valve is a specially designed valve typically used for on/off service in pulp making, slurry handling, residue discharge, and sewage treatment. It is particularly suitable for use on stock cleaners, gravity separators, and hydrapulpers in the paper industry.

Its double gate configuration makes it different from standard knife gate valves. Instead of relying on a single gate movement, the DS-Series uses a double gate design to improve operating efficiency and support reliable shut-off in media that may contain stock, fibre, dust, grain, or other suspended material.

For companies looking for DS-Series Double Knife Gate Valves in South Africa, KV Controls supplies a solution built for demanding industrial control applications.

Why the DS-Series Stands Out

The DS-Series includes several practical design features that make it highly suitable for difficult process media.

Double Gate Design

One of the biggest advantages of the DS-Series is its double gate design, which shortens the full travel to half that of standard knife gate valves. This helps improve operating efficiency and makes the valve better suited to applications where quick response and controlled shut-off are important.

Two-Cylinder Operation

The valve operates using two cylinders, which helps reduce the opening and closing speed by half. This supports more controlled valve operation and gives the DS-Series a strong performance advantage in demanding industrial applications.

Two-Piece Body with No Cavities

The two-piece body construction with no cavities helps reduce the risk of media build-up inside the valve. In systems handling pulp, slurry, residue, or fibrous material, this is an important feature because it helps keep the valve operating more cleanly and reliably.

Tight Shut-Off and Reliable Performance

The DS-Series is designed for tight shut-off and reliable performance, making it suitable for applications where dependable valve sealing is essential to process efficiency and maintenance control.

O-Ring Loaded Removable Seat

The valve includes an O-ring loaded removable seat that is self-compensating, helping improve abrasion resistance and extend service life. This also makes maintenance easier when the seat needs to be replaced.

Flexible Seat Options

The DS-Series is available with metal seat, PTFE seat, or EPDM seat options, allowing the valve to be matched more effectively to the application and media conditions.

Applications of the DS-Series Double Knife Gate Valve

The DS-Series is especially suited to applications where difficult or solids-containing media must be controlled with confidence.

Typical applications include:

Pulp making
Slurry handling
Residue discharge
Sewage treatment
Stock cleaners
Gravity separators
Hydrapulpers
Paper industry systems

It is also suitable for handling media such as:

Wastewater
Paper pulp
Syrup
Slag

This broad suitability makes the DS-Series a valuable choice for industries that need a dependable valve in demanding process conditions.

Why the DS-Series Works Well in the Paper Industry

The paper industry often deals with media that is fibrous, thick, abrasive, or difficult to isolate effectively. In these conditions, a valve must provide strong shut-off performance while resisting build-up and wear over time.

The DS-Series works well because it combines:

efficient double gate operation
cavity-free body construction
reliable shut-off
removable seat design
good wear resistance
suitability for stock and fibre-containing media

These features make it particularly valuable in paper industry applications where stock cleaners, gravity separators, and hydrapulpers form part of the process system.

DS-Series Technical Specifications

The DS-Series Double Knife Gate Valve offers a strong technical profile for industrial use.

Key technical details include:

Nominal diameter: DN100 to DN400
Nominal pressure: 1.0 MPa, 1.6 MPa, ANSI 150LB
Connection type: Wafer
Air pressure: 5 to 7 bar
Working temperature: -29°C to 100°C and up to -29°C to 230°C depending on materials selected

This makes the DS-Series suitable for a wide range of process applications where media conditions and operating requirements can vary.

Main Materials of Construction

The DS-Series is available in several material options to suit industrial service conditions.

Body Materials

WCB
CF8
CF8M

Gate Materials

410 + Cr
304 + Cr
316 + Cr

Seat Materials

304 + Cr / STL
316 + Cr / STL

Cylinder Axis

45# + Cr

Packing

PTFE / Graphite

These material options help improve durability, wear resistance, and suitability for demanding industrial environments.

Why Choose KV Controls for DS-Series Double Knife Gate Valves?

Choosing the right supplier is just as important as choosing the right valve. At KV Controls, the goal is to supply industrial valve solutions that are suited to real application conditions and long-term operational performance.

Application-Based Support

Every process is different. Media type, wear conditions, temperature, and shut-off requirements all affect the best valve choice. KV Controls helps clients choose valve solutions based on real operating needs.

Trusted Industrial Supply

KV Controls supplies valve solutions for demanding industries where reliability, performance, and practical service life matter. This gives clients confidence in both the product and the support behind it.

Solutions for South African Industry

South African industry needs equipment that can handle real production demands. From paper processing and wastewater treatment to residue handling and slurry systems, KV Controls supplies products designed for tough operating conditions.

Benefits of DS-Series Double Knife Gate Valves in South Africa

For businesses in South Africa, the DS-Series offers several practical advantages in demanding applications.

These include:

faster and more efficient double gate movement
reduced travel compared to standard knife gate valves
two-cylinder operation for controlled performance
cavity-free body design to reduce build-up
tight shut-off and reliable sealing
removable seat for easier maintenance
good wear resistance for difficult media
strong suitability for pulp, slurry, wastewater, syrup, and slag

These benefits make the DS-Series a smart option for plants that need dependable valve performance under challenging conditions.

A Strong Valve Solution for Demanding On/Off Service

In industrial systems, valve failure or poor shut-off performance can result in product loss, maintenance problems, and unwanted downtime. The best way to reduce these risks is to use a valve designed specifically for the application.

The DS-Series Double Knife Gate Valve offers a strong solution for on/off service in pulp making, slurry, residue discharge, and sewage treatment. Its practical design features and process suitability make it a valuable choice for industries where media is difficult to control.

With KV Controls as your supplier, you gain access to a valve solution backed by application knowledge, trusted supply, and support for South African industry.

Conclusion

If your operation requires a dependable valve for pulp making, slurry handling, residue discharge, sewage treatment, or paper industry process control, the DS-Series Double Knife Gate Valve is a strong solution to consider. Its double gate design, two-cylinder operation, cavity-free body, tight shut-off, removable seat, and strong material options make it well suited to demanding industrial environments.

With KV Controls as your supplier, you gain the benefit of working with a company that understands industrial applications in South Africa and supplies valve solutions built for reliability, efficiency, and long-term value.
