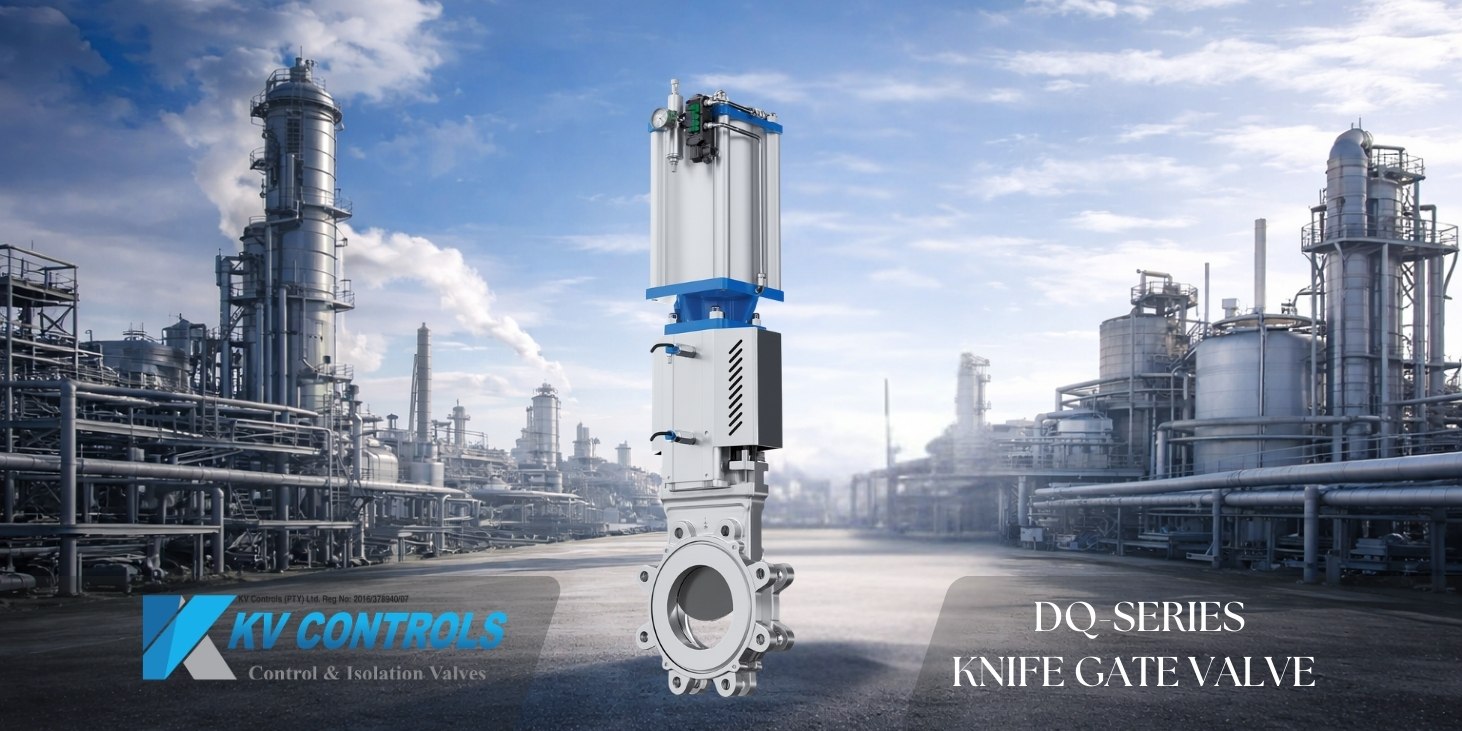

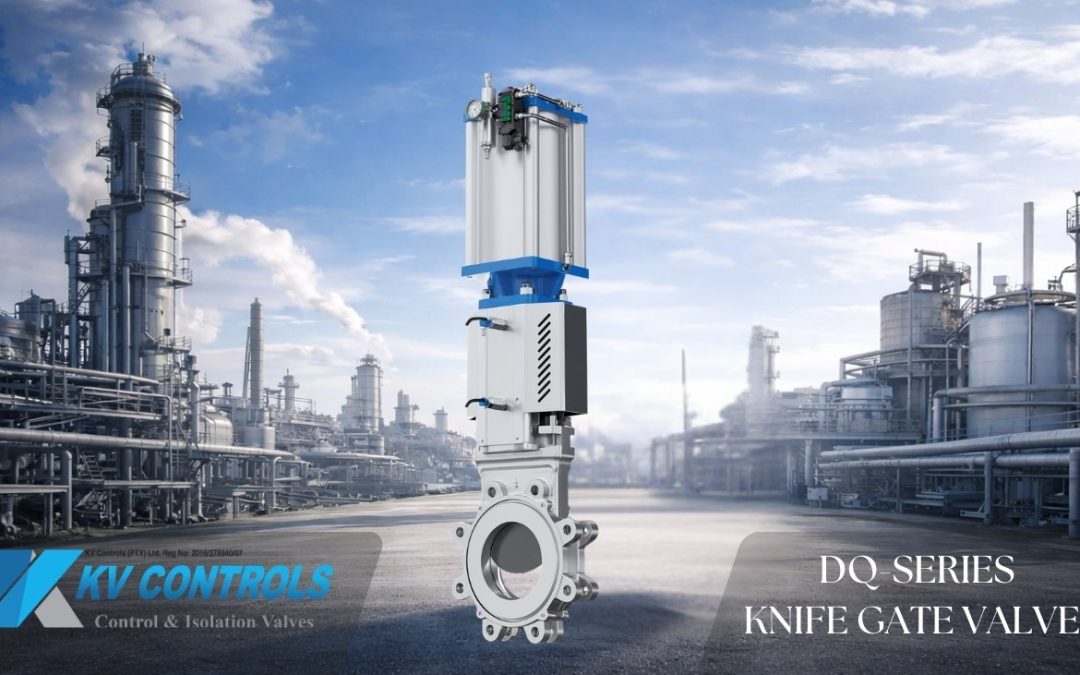

DQ Series Knife Gate Valves South Africa

In demanding industrial environments, valve performance plays a major role in plant efficiency, maintenance planning, and long-term reliability. When operations involve slurry, fibres, sewage, pulp, slag, or suspended solids, standard valve solutions often do not offer the shut-off performance needed for consistent operation. This is where the DQ Series Knife Gate Valve stands out as a dependable solution for difficult process conditions. The DQ series is described in the product brochure as a lightweight, compact, linear shut-off valve designed for fluids containing fibre or suspended particles.

At KV Controls, we understand that South African industries need more than just a valve. They need a solution that performs under pressure, lasts in abrasive environments, and supports smoother plant operation over time. That is why the DQ Series Knife Gate Valve is a strong choice for operations looking for efficient isolation in tough industrial applications.

What Is a DQ Series Knife Gate Valve?

The DQ Series Knife Gate Valve is a wafer-type knife gate valve developed for shut-off duties in systems where difficult media is present. According to the brochure, the range is available from DN50 to DN1200, with pressure ratings of PN10, PN16, and ANSI 150, making it suitable for a wide variety of industrial systems.

Its design is especially useful in applications where media may contain solids, fibres, pulp, sludge, or slurry. The gate features an arc-shaped bottom, which helps improve cutting action during closing. This makes it better suited to abrasive or solids-laden flow than many conventional shut-off valves.

Why the DQ Series Stands Out

The DQ Series is designed with features that support performance, easier operation, and improved sealing in harsh service conditions.

Compact and Lightweight Design

The brochure highlights the valve’s lightweight, compact construction, which makes it easier to install where space may be limited. This is an advantage in industrial systems where layout flexibility is important and plant space is already crowded with other equipment.

Reduced Torque and Easier Operation

The DQ Series includes two stem bearings at the top of the yoke, helping reduce operating torque and support easier valve movement. This design contributes to smoother operation and makes the valve more practical for regular service duties.

Improved Sealing Performance

The packing gland and packing are internally located, which helps reduce leakage risk. The seat design is also backed by an O-ring, giving it a self-compensating wear function that improves seat tightness and supports a longer service life. The brochure also notes that seat replacement is designed to be easy and fast when required.

Better Resistance to Wear

Each gate is described as precision ground and hard chrome plated as standard, which supports abrasion resistance and corrosion resistance. In industries where harsh media can accelerate wear, this is an important performance benefit.

Lower Risk of Clogging

The travel aligning block provides support to help guide the gate during closing, especially where material may accumulate between the body cavity and the gate. This helps improve tightness and reduce the risk of clogging in service.

Applications for the DQ Series Knife Gate Valve

The brochure lists the DQ Series as suitable for several industries and media types, including:

• Pulp and paper

• Wastewater treatment

• Mining

• Sugar making

• Chemical processing

Applicable media listed in the technical section include:

• Pulp

• Sewage

• Coal slurry

• Syrup

• Slag

This makes the valve a strong solution for South African plants where isolation reliability is needed in abrasive, fibrous, or heavy-duty process applications.

DQ Series Technical Highlights

The DQ Series offers a strong technical range for industrial use. The brochure specifies:

• Nominal size range: DN50 to DN1200

• Pressure ratings: PN10, PN16, ANSI 150

• Connection type: Wafer

• Seat options: Metal, PTFE, EPDM

• Temperature range: depends on seat type

• Testing standard: MSS SP-81 hydraulic pressure testing

The valve is also described as bi-directional in soft-seated versions, with zero leakage to 10 bar / 150 psi in the preferred direction and limited tightness in the non-preferred direction at low pressure.

These features make the DQ Series suitable for facilities that need a dependable shut-off valve with flexibility across different application requirements.

Why Choose KV Controls?

Choosing a valve supplier is just as important as choosing the valve itself. At KV Controls, we aim to give clients more than product supply. We help businesses source valve solutions that fit their process conditions, service requirements, and long-term performance needs.

Application-Driven Supply

Every plant has unique operating conditions. Media type, pressure, temperature, wear conditions, and maintenance expectations all matter. KV Controls helps clients choose valve solutions suited to the real demands of their systems.

Trusted for Industrial Valve Solutions

KV Controls is known for supplying valve solutions for challenging industrial environments. When clients work with us, they gain access to products chosen for durability, practical performance, and value in demanding applications.

Support for South African Industry

South African industries often operate in harsh conditions where product reliability matters. From mining and wastewater to process manufacturing and chemical environments, KV Controls supplies solutions that support productivity and reduce unnecessary downtime.

The Value of the DQ Series in Harsh Environments

A knife gate valve must do more than open and close. In difficult service conditions, it must cut through media, seal reliably, resist wear, and continue performing over time. The DQ Series is built with these practical requirements in mind.

Its combination of compact design, strong shut-off ability, hard chrome plated gate, replaceable seat options, and suitability for slurry and fibre-heavy applications makes it a smart option for businesses that need dependable isolation performance.

When supplied by KV Controls, the DQ Series becomes part of a larger service offering built around industry knowledge, dependable product support, and a commitment to helping clients find the right valve for the job.

Conclusion

If your plant requires a reliable valve for abrasive, fibrous, or solids-laden media, the DQ Series Knife Gate Valve is a strong solution to consider. Designed for demanding shut-off duties and backed by practical performance features, it is well suited to industries such as mining, wastewater, pulp and paper, sugar, and chemical processing.

With KV Controls as your supplier, you gain the benefit of working with a company that understands industrial applications in South Africa and values long-term reliability, product quality, and application-based support.

CTA

Looking for DQ Series Knife Gate Valves in South Africa? Contact KV Controls today for dependable valve supply and expert support for your application.
